2017

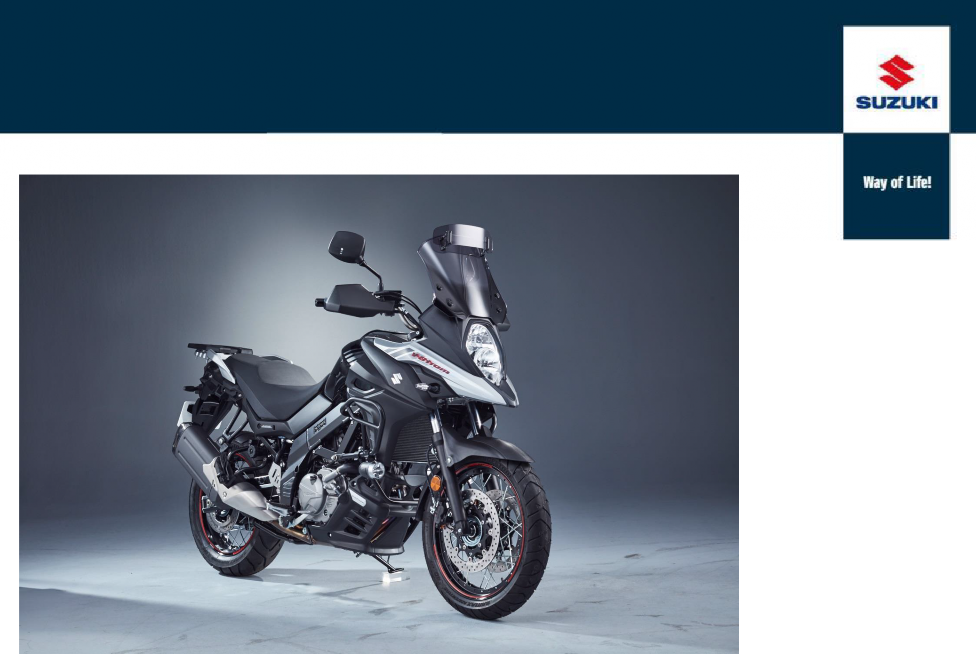

V-Strom 650A







ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Vario Touring Screen 990D0-28K50-CLE Clear, acrylic glass

The 7-fold adjustable spoiler reduces air pressure when driving thus increasing riding comfort even for taller riders.


WVTA homologation, DOT mark.


For spare parts see end of document.



- image shows light smoked version -


0,1


h


July 2017



Vario Touring Screen Light smoked

990D0-28K50-SMO


0,1


h


July 2017


Grip Heater 57100-28840-000

There is no such thing as bad weather once you have the best possible equipment. No matter how chilly it may be, these grip heaters will keep your fingers warm as long as you may ride. The grip heaters have three different heat settings and a maximum power consumption of 53,9 Watt.




2,0


h


April 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Wider off road footrest 990D0-28K10-000

Black, adjustable up to approx. 5 mm to the front or rear and 3 positions in height.

Set for left and right hand side. WVTA homologation.




April 2017

Side stand extension plate 990D0-11J20-000 Aluminium/Stainless steel

Adds stability when parked on soft or uneven ground, material: aluminium/stainless steel with engraved V-Strom logo.

WVTA homologation.

Note: available for all markets except USA and Canada. Cannot be installed with center stand (p/n 42100-06870-000)




0,25 h


Feb. 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Center Stand 42100-06870-000

Black powder-coated

A useful accessory to bring your V-Strom 650 to a safe and stable standing position. Improves access to your bike for standard maintenance activities.


WVTA homologation.


Note: Cannot be installed with side stand extension plate (p/n 990D0- 11J20-000).




1,0 h


March 2017

Knuckle Guards 57300-27840-291



Protect your hands against wind, weather and branches with

one of the most essential original accessory items. Easy to

mount.


Black grained.

0,4 h

March 2017

WVTA homologation.



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Mirror extension 990D0-11JME-010

Taller riders will benefit from differently mounted rear view mirrors when riding. 51 mm higher mirror position adjustable up to 40 mm sideways. Made of aluminium, two-piece set.

WVTA homologation.




0,1 h


Feb. 2017

Low seat 45100-28K50-BGP

The low seat allows you to reduce the seat by approx. 20mm. Grey with V-Strom logo. Easily replaces the standard seat.


- no image available -


March 2017

High seat 45100-28K60-BGP

This high seat is approx. 20mm higher than the standard seat

– very comfortable for taller riders. Grey, with V-Strom logo. Easily replaces the standard seat.


- no image available -


March 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


LED fog lamp set 99000-990D2-211 Suzuki and PIAA have jointly developed these

fog lamps to incorporate LED technology for better illumination. Includes installation kit for mounting on accessory bar. 2 LED elements inside a high-tech reflector with 8 Watt and 3,600 Candela light output per lamp. Supplied with switch and wiring harness.

Two-piece set.

Can only be fitted to accessory bar black (p/n 990D0-28K00-030) or silver (p/n 990D0-28K00-031).


WVTA homologation.


For spare parts see end of document.





April 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


LED Turn signal set 99000-99008-140

High-tech LED turn signal set. Set of two front and two rear turning lights including wiring harness and relay. Low power consumption (1.2W each), 8 bright LED’s per turning light.

Four-piece set.


WVTA homologation.

For spare parts see end of document.




1,5 h


April 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Aluminium chain guard 990D0-28K10-ALU

This alternative chain guard made of black powder-coated aluminium with engraved V-Strom logo underlines the real adventure image of your new V-Strom 650. Replaces OE chain guard.


WVTA homologation.




0,1 h


April 2017

Engine Under Cowling 94400-11830-291

Black grained with V-Strom insets

Give your bike the unique look with the stylish cowling. WVTA homologation.




0,4 h


March 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Accessory bar

This stylish accessory bar underlines the unique touring look, powder-coated, 2mm steel tube.

WVTA homologation.


Black 990D0-28K00-030

Silver 990D0-28K00-031


Note: Required for installation of LED fog lamps (p/n 99000-990D2- 211).


For service parts please see details at the end of the bulletin.



- image shows black version -


0,3 h


April 2017

Aluminium skid plate 990D0-28K00-035

2 mm thick aluminium skid plate in brushed silver aluminium with Suzuki logo to emphasize the offroad look of your V- Strom.

WVTA homologation.

For service parts please see details at the end of the bulletin.


- no image available -


0,5 h


TBC



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Standard top case, 35L 93300-31820-000

Standard plastic top case, 35L including anodized cover, w/o lock and key.

WVTA homologation. Max. load: 3 kg

Max. speed: 130 km/h



- image shows installed backrest -


April 2017

Backrest for standard top case, 35L

990D0-TC25L-005

Improves riding comfort of the passenger, to be installed on top case anodized (p/n 93300-31820-000).

WVTA homologation.


0,2 h


Feb. 2017

Carrier plate for standard top case, 35L

93900-31820-000

Black

Necessary adapter plate to install top case, 35L, p/n 93300- 31820-000.


WVTA homologation.




0,3 h


April 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Standard side case set 93100-31820-000

Standard plastic side case set (LH&RH cases), w/o lock and key.

  • 18L for right hand side

  • 21L for left hand side


WVTA homologation.

Max. load: 3 kg each Max. speed: 130 km/h




April 2017

Standard side case carrier bracket 93700-31820-000

Carrier bracket for standard plastic side cases (LH&RH). Easy detach with quick lock screw system. Required for mounting of side cases.


WVTA homologation.




0,4 h


April 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Top case, 55L 990D0-E5500-000

Top case, 55L including lock and key.


Note: Please order separately top case carrier, p/n 990D0-28K00-060.

Do not use in combination with side case set, p/n 93100-31820-000. Please use alone 990D0-E5500-000.


WVTA homologation. Max. load: 3 kg

Max. speed: 130 km/h.





April 2017

Top case carrier plate 990D0-28K00-060 Metallic matt titanium silver anodized.

Required carrier plate for mounting plastic top case, 55L. WVTA homologation.

Note: For spare parts, please see end of bulletin.




0,3 h


April 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Small tank bag for ring fixation 990D0-04300-000

Durable nylon material, volume of 5 ltrs., expandable up to 9 ltrs., rain cover included, with shoulder belt and reflective piping.


Note: Please order ring fixation (p/n 990D0-04105-000) separately.

Max. load: 2,5 kg Max. speed: 130 km/h




0,4 h


Feb. 2017

Large tank bag for ring fixation 990D0-04600-000

Durable nylon material, volume of 11 ltrs., expandable up to 15 ltrs., rain cover, nylon adapter included, with shoulder belt and reflective piping.

Note: Please order ring fixation (p/n 990D0-04105-000) separately.


WVTA homologation.

Max. load: 2,5 kg Max speed: 130 km/h




0,4 h


Feb. 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Map case for tank bag 990D0-04605-000

Map case with transparent front. Useful add-on for your tank bag. Fits large and small tank bag.




Feb. 2017

Nylon adapter for tank bag, large 990D0-04610-000

Adapter needed to install the large tank bag on tank ring fixation system.


- no image available -


Feb. 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Ring fixation for tank bags 990D0-04105-000

Required item to install tank bag large (p/n 990D0-04600-000) or tank bag small (p/n 990D0-04300-000).


Note: not in combination with fuel cap protection sticker (p/n 990D0- 17K04-CRB or 990D0-17K04-BLK).




0,1 h


Feb. 2017

Textile rear bag 990D0-04195-000

The rear bag is made of durable nylon material with reflective piping. It has a capacity of 9 litres including belts for fixation on the rear carrier

Dimension: 29 x 30 x 14 cm


Max. load: 2,5 kg Max speed: 130 km/h




0,2 h


Feb. 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Tank Pad TBC

Tank pad made of stone chip foil with V-Strom logo, protects against scratches.


- no image available -


End of April 2017

Tank protection foil transparent TBC

Transparent protection foil with Suzuki logo. It is almost invisible. For protection of tank against scratches in the area of your knees.


Two-piece set.


- no image available -


End of April 2017

Protection sticker clutch

990D0-18K07-PAD

- no image available -

Feb. 2017

Fuel cap protection sticker Carbon, made of Evotec.


Four-piece set.

990D0-17K04-CRB




0,1 h


March 2017

Fuel cap protection sticker

Black, made of black stone chip foil.


Four-piece set.

990D0-17K04-BLK




0,1 h


March 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Decal sticker kit

TBC


- no image


available


-


End of April 2017





ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Wheel Decals

Customize the bike’s appearance with these wheel decors in red/black colour with V-Strom logo.


Set for 19” front wheel 990D0-31JF6-PAD






0,5


h


Feb.


2017




Set for 17” rear wheel

990D0-31JR6-PAD


0,5


h


Feb.


2017




ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Rim decal

Decals for wheel of your new V-Strom to customize the bike’s appearance. Set of six decals.


Set for 19” front wheel 990D0-31JF5-PAD




0,5


h


Feb. 2017

Set for 17” rear wheel

990D0-31JR5-PAD


0,5


h


Feb. 2017

Wheel decal 990D0-WHL04-YEL

Small decals in yellow for one wheel of your new V-Strom to customize the bike’s appearance.

Set of 2 decals for one wheel.




0,2


h


April 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Wheel decal 990D0-WHL04-RED

Small decals in red with small V-Strom logo for one wheel of your new V-Strom to customize the bike’s appearance.

Set of 2 decals for one wheel.




0,2 h


April 2017

Wheel decal 990D0-WHL04-WHT

Small decals in white with small V-Strom logo for one wheel of your new V-Strom to customize the bike’s appearance.

Set of 2 decals for one wheel.




0,2 h


April 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Wheel decal 990D0-WHL04-GRY

Small decals in grey with small V-Strom logo for one wheel of your new V-Strom 1000 to customize the bike’s appearance.

Set of 2 decals for one wheel.






0,2 h


April 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Navigation Bracket 990D0-28KNB-000

Navigation bracket with damping system installed at the center of the handle bar. Compatible with several motorcycle navigation systems. For detailed information please ask your local Suzuki partner.


WVTA homologation.




0,1 h


March 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Alarm unit 990D0-ALARM-001

Protect your bike from unwanted access. This alarm system includes an approved immobilizer. The compact system is self-sustaining and cannot be disabled even when the main power source is cut. Only to be mounted with wiring harness (990D0-31J00-ALM), supplied with two remote control units.




0,5 h


Feb. 2017

Alarm harness 990D0-31J00-ALM Wiring harness for alarm unit (990D0-ALARM-000)


Feb. 2017

Outdoor bike cover 990D0-31JRC-000

Durable weather proof bike cover made out of breathable material which protects your bike from rain, dust and bird droppings when not in use.




On stock



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Indoor bike cover 990D0-31JIC-000 with logo

Dust proof and breathable indoor cover for your Suzuki V- Strom.




On stock

U-Lock 990D0-SIL16-270

When it comes to securing motorbikes, U-locks are probably the best way to protect your bike. Solid materials and no moving parts outside the lock mechanism are an excellent starting point for the strongest resistance possible.


Certified: NF-FFMC, classé SRA




On stock



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Service stand rear 990D0-STAND-015

Blue service stand for a secured position of your bike. Suited for bikes with and without ABS.




On stock

Replacement bobbins 990D0-STAND-SET




On stock



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Bobbins for rear stand 990D0-04K17-000 Stylish aluminum bobbins, set of two pieces.






On stock



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Battery charger 990D0-OPTIM-MA3 12V battery optimiser and charger

- Please note: charger has a 220 – 240 V connection - Application:

for all 12V lead acid batteries, GEL, sealed “MF” AGM

(motorcycle) or with filler caps. Perfect for batteries of rated capacity 2Ah to 35Ah (it can even maintain larger batteries; it just takes longer to charge).

Note: Fitted with European 2-pin plug.





On stock

Additional separate charging cable 990D0-OPTI1-CAB For permanent mounting to a second bike:


Note: for European countries only


On stock



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


First aid kit 990D0-FST01-KIT

with warning vest






On stock

First aid kit 990D0- FST01-AID

without warning vest


Important note: please note, that First Aid Kits are compulsory when travelling within several European countries. Please check for local regulations while riding outside of your home country.

Meets DIN13167 regulations.


On stock

Tire valve cap set 990D0-19069-000 With S-mark, two-piece set.




Feb. 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Rubber cap 99000-99074-A24 Rubber cap covering steering stern nut




On stock



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Spare parts Vario Touring screen


top

Hinge set for Vario Touring screens

990D0-HINGE-SET


- no image


available


-


Feb.


2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Spare parts LED fog lamp


top

LED fog lamp Replacement part

99000-990D2-205


- no image


available


-


April


2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Spare parts accessory bar


top

Accessory bar, black, LH

990D0-28KLH-030


- no image available -


April


2017

Accessory bar, black, RH

990D0-28KRH-030


- no image available -


April


2017

Cross binder for accessory bar, black

990D0-28KCB-030


- no image available -


April


2017

Accessory bar, silver, LH

990D0-28KLH-031


- no image available -


April


2017

Accessory bar, silver, RH

990D0-28KRH-031


- no image available -


April


2017

Cross binder for accessory bar, silver

990D0-28KCB-031


- no image available -


April


2017

Mounting kit for accessory bar


990D0-28KMT-030


- no image available -


April


2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Spare parts LED turn signal set top

LED turn signal, single 99000-99008-12A


- no image available -


Feb. 2017

Relay LED turn signal 99000-99008-14A


- no image available -


April 2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Spare parts skid plate

top

Mounting kit incl. brackets


990D0-28KMT-035


- no image


available


-


July


2017



ITEM DESCRIPTION PART NO.

( = spare part)




Installation time


Tentative Availability


Spare parts top case carrier plate

top

Replacement rubber Four-piece set.


990D0-99999-R79


- no image


available


-


April


2017
